Breaking the Session Initiation Protocol in IMS Networks
Table of Contents
Preface and Disclaimer
Almost a year ago I was finishing my bachelor’s degree. At the time, I was working as a penetration tester at a Danish telecommunications company, so I wanted to write a thesis that was relevant to my workplace. After speaking with colleagues, I decided to experiment with the Session Initiation Protocol, better known as SIP. This article walks through the methodology, background, and results of the tests.
None of the work done here represents the opinions of my former employer. All impacted parties have been anonymized to avoid leaking information about potentially still vulnerable systems.
Acknowledgement
Before getting started, I would like to thank my colleagues during the time, William and Florian for being reliable mentors!
Background
The Session Initiation Protocol (SIP) is best known as the signaling core of IP telephony, or Voice over IP (VoIP). Many tools exist for exercising SIP on legacy VoIP stacks, but equivalent utilities for Voice over LTE (VoLTE) are scarce even though 4G networks rely on VoLTE for voice services. Because I could not be sure the research would uncover vulnerabilities, I focused the thesis on closing this tooling gap. The article will not discuss the tooling, only the research.
What is SIP?
The Session Initiation Protocol (SIP) is a cornerstone protocol in telecommunications networks. It initiates, maintains, and terminates communication sessions. The Internet Engineering Task Force developed SIP, submitting the initial draft in 1997, releasing the second version in 1998, and promoting it to Proposed Standard status as RFC 2543 in March 1999.
SIP is a plain-text protocol that borrows ideas from the Hypertext Transfer Protocol (HTTP) and the Simple Mail Transfer Protocol (SMTP). From HTTP it inherits the client/server design and the use of Uniform Resource Identifiers (URIs) and Uniform Resource Locators (URLs), while from SMTP it adopts headers such as From: and Subject:.
Consider a simplified example of communication between two parties in a VoIP environment where both devices know each other’s addresses:
William wants to talk to Emil, so he opens his dialing app and places a call. William’s phone sends an INVITE to Emil, and Emil’s phone responds with Ringing. When Emil picks up, it returns 200 OK, William acknowledges with ACK, and a media session is established. SIP handles the signaling only, while separate protocols negotiate and carry the media.
Below is a simple SIP request:
INVITE sip:emil@voip.phone.org; phone-context=voip.phone.org; SIP/2.0
Via: SIP/2.0/UDP voip.phone.org:5060; branch=z9hG4bK
Max-Forwards: 70
To: emil <sip:emil@voip.phone.org>
From: william <sip:william@voip.phone.org>; tag=12345
Call-ID: 123456789X-cave
CSeq: 1 INVITE
Contact: <sip:william@voip.phone.org>
Content-Type: application/sdp
Content-Length: ...
This snippet highlights several key SIP headers. The To header names the intended recipient, while From identifies the originator and includes a unique dialog tag. Call-ID carries a random identifier that keeps the dialog unique, and Contact specifies where follow-up requests should be sent. Finally, the message includes Content-Type and Content-Length headers, just like HTTP, that precede the SDP (Session Description Protocol) payload, which negotiates the media parameters. If the IMS network fails to validate headers such as From, attackers can exploit the gap for caller ID spoofing by forging the number that appears on the recipient’s phone.

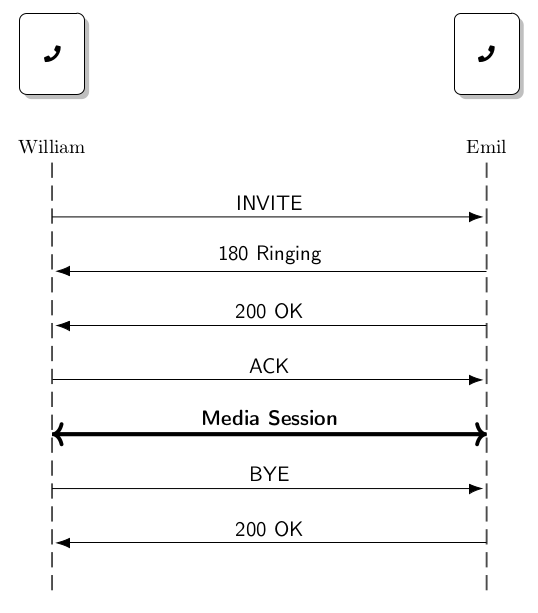

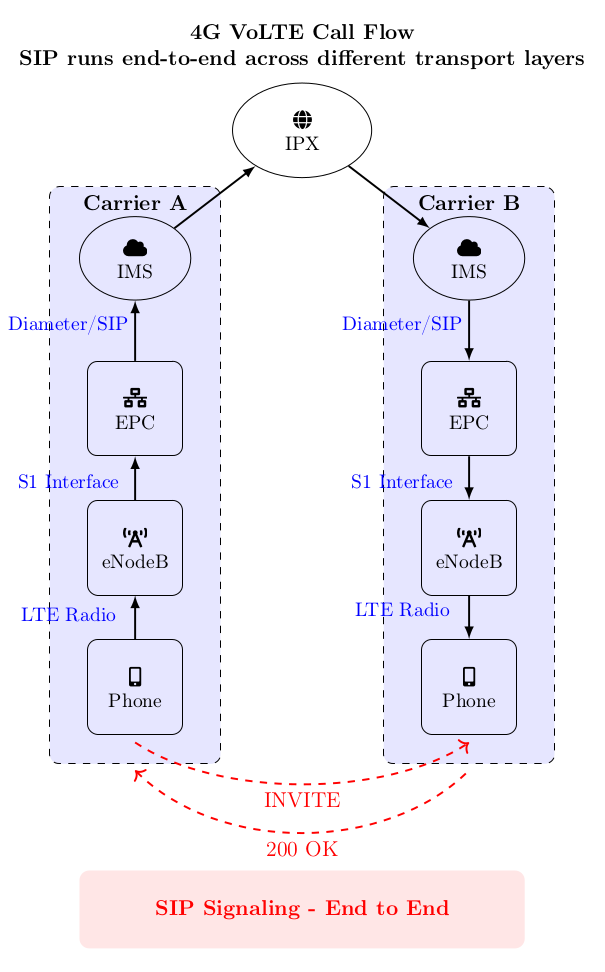

The diagram below highlights several of the important aspects of the SIP flow:
Reversing
To replicate the SIP flow that a phone follows, I built a few small hooks to alter the behavior of an IMS implementation on a rooted Samsung S20 (SM-G780G). After pushing a Frida server to the device’s /data/local/tmp folder, I began by identifying the relevant files. Two components immediately stood out during the filesystem walk: imsservice.apk and libsec-ims.so, representing the Java service and the associated native library.
imsservice.apk

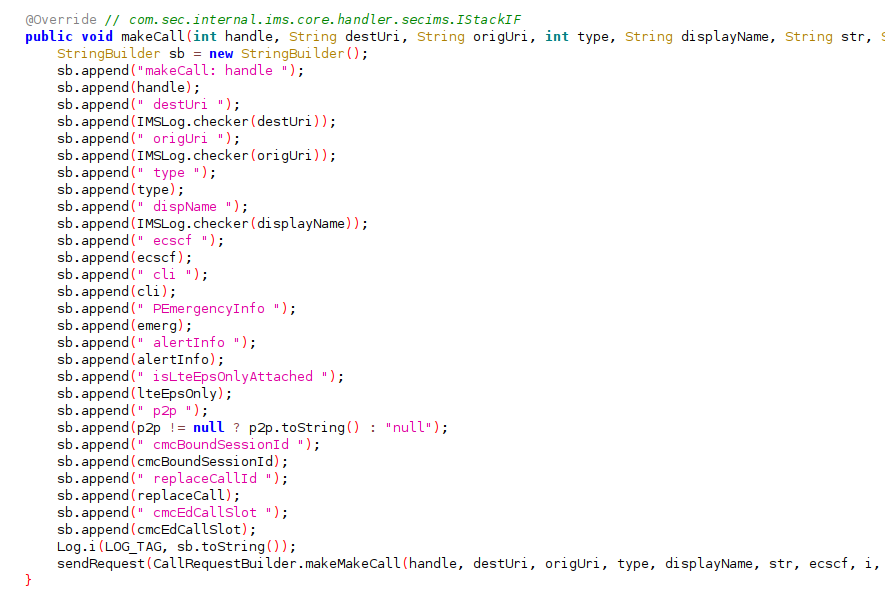

I used frida-trace to watch the function calls that occur during phone communications. One standout function inside imsservice.apk is makeCall, and jadx-gui shows the snippet below:
The function mostly logs through a StringBuilder, but the call tree reveals this invocation flow:
The function processCommandBuffer is a native function called through the Java Native Interface (JNI). It resides in libsec-ims.so and is responsible for communicating with the HAL (Hardware Abstraction Layer), which sends the request to the baseband processor and ultimately to the nearest cell tower.

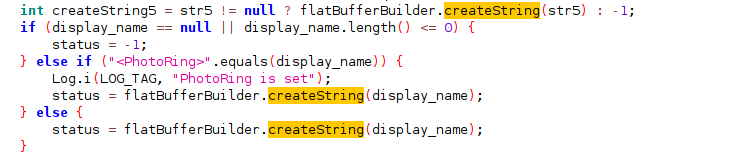

The function makeMakeCall turned out to be responsible for constructing most of the INVITE.

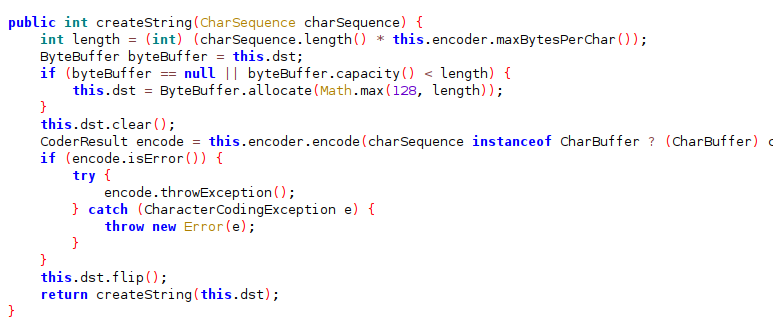

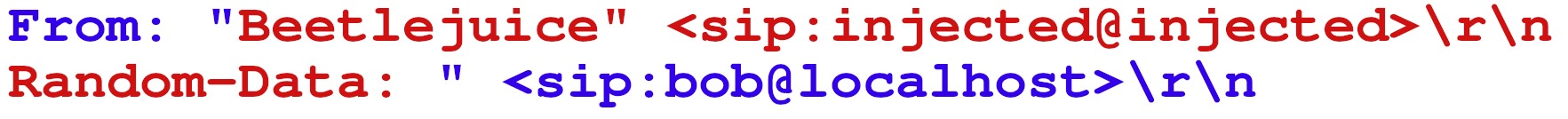

Because createString uses a standard UTF-8 encoder, inserting CRLF characters into the display name lets us append new headers beneath it. That trick became the first way I modified the INVITE request.
This setup is enough to send basic INVITE requests, but flying blind gets frustrating fast.
libsec-ims.so

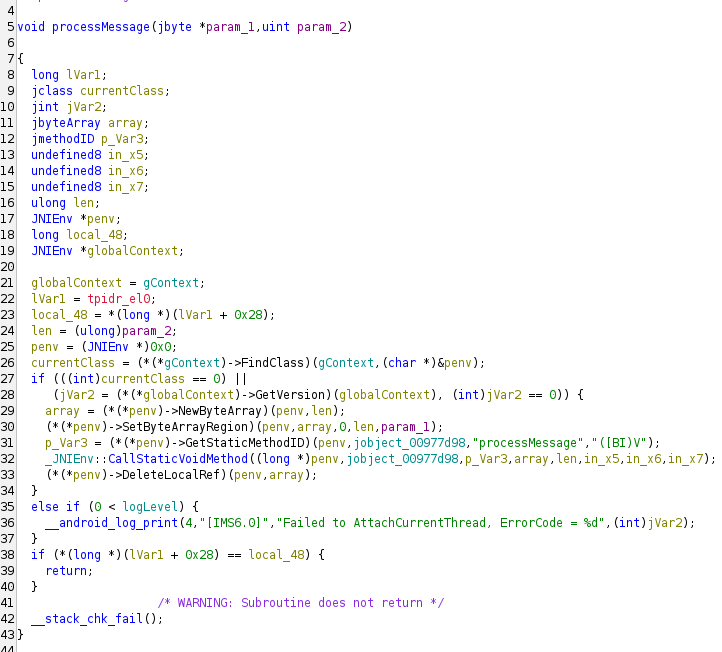

Running Ghidra with JNIAnalyzer for JNI typing produced the decompilation below:
The JNI call CallStaticVoidMethod hands control to Java so response data can travel from the native
layer back into the runtime. That mechanism lets processMessage deliver the populated byte array to

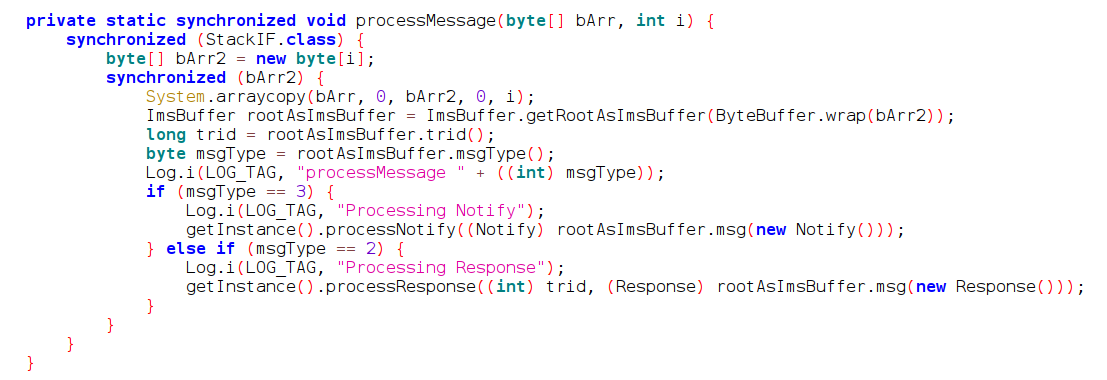

Java. Decompiling the original APK reveals the Java-side method:

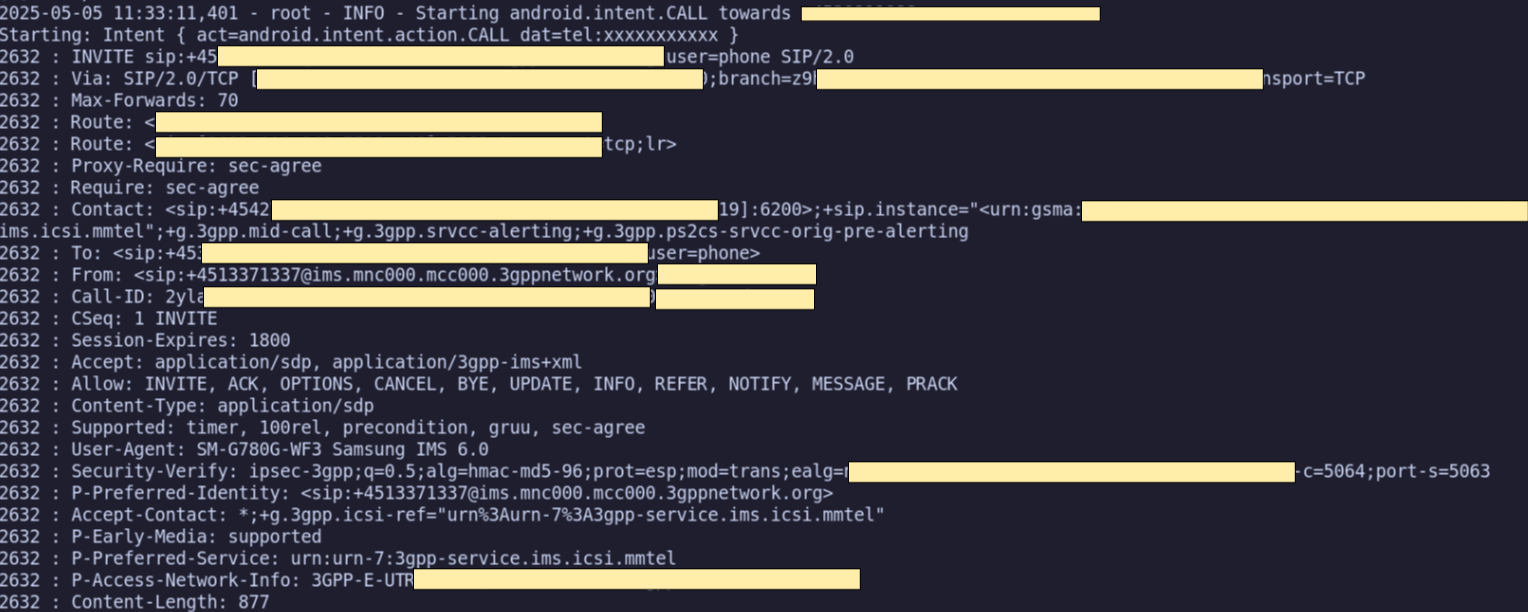

By hooking the Java-side processMessage and converting the byte array to ASCII, we can analyze the SIP requests and responses. Below is the trace of a message where the originating phone number was changed to +4513371337:
The same hook works even without modifying the requests.
A better hook
Crafting SIP messages from scratch required more reversing. Many of the shared object’s methods live
in the resip namespace from the open-source
resiprocate project.
Tracing and logging inside Frida revealed the following invocation flow:
StartSession -> SendInvite -> SendSipMsg -> SendSipToNW.
BaseManager::SendSipToNW(int, resip::SipMessage const&, TransactionUserHandler*) uses IPC to communicate with the HAL. The argument contains an object of type resip::SipMessage.
Every C++ class with virtual methods gets a virtual method table (vtable) that stores pointers to those methods. When we only have a SipMessage* at runtime, we can still jump to helper functions as long as we know the right offsets inside its vtable. That is why mapping the vtable layout matters. Using clang we can inspect the vtable:
clang++ -c testSipMessage.cxx -I/usr/include/c++/v1 \
-Xclang -fdump-vtable-layouts -I/tmp/resiprocate
It looks as follows:
Vtable for 'resip::SipMessage' (11 entries).
0 | offset_to_top (0)
1 | resip::SipMessage RTTI
-- (resip::Message, 0) vtable address --
-- (resip::SipMessage, 0) vtable address --
-- (resip::TransactionMessage, 0) vtable address --
2 | resip::SipMessage::~SipMessage() [complete]
3 | resip::SipMessage::~SipMessage() [deleting]
4 | resip::Message::Brief resip::Message::brief() const
5 | resip::Message *resip::SipMessage::clone() const
6 | std::ostream &resip::SipMessage::encode(std::ostream &) const
7 | std::ostream &resip::SipMessage::encodeBrief(std::ostream &) const
8 | const resip::Data &resip::SipMessage::getTransactionId() const
9 | bool resip::SipMessage::isClientTransaction() const
10 | std::ostream &resip::SipMessage::encodeSipFrag(std::ostream &) const
The most helpful entry is resip::Message *resip::SipMessage::clone(). Once we hold a SipMessage
object, we can call helper methods such as:
void
SipMessage::addHeader(Headers::Type header, const char* headerName, int headerLen,
const char* start, int len)
/* ... */
void
SipMessage::remove(const ExtensionHeader& headerName)
Once the hook works, we can lean on the SipMessage helpers to add or remove headers and craft
arbitrary requests. The earlier clang++ command used the upstream resiprocate source, so the
vtable offsets might differ from Samsung’s build. That left two options: locate the clone entry in
the device binary or experiment with offsets until one worked. Trial and error showed that the clone
method sat at 2 * Process.pointerSize inside the vtable.
Because SipMessage::addHeader takes a Headers::Type enum, I mirrored it in the Frida script so the
hook could rewrite outgoing SIP requests. Below is a slightly scuffed Frida hook that modifies SIP
traffic (including non-INVITE requests) and demonstrates the approach:
const globals = []; // used to ensure our allocated strings don't despawn
const targetModule = "libsec-ims.so";
const targetFunction = "_ZN11BaseSession11SendSipToNWERKN5resip10SipMessageEP22TransactionUserHandler"; // function sending sip over network
var singleton = 0;
const singleton_disabled = true;
const SipHeaders = {
UNKNOWN: -1, Via: 0, MaxForwards: 1, Route: 2, RecordRoute: 3, Path: 4, ServiceRoute: 5, ProxyRequire: 6, ProxyAuthenticate: 7, Identity: 8, IdentityInfo: 9, Require: 10, Contact: 11, To: 12, From: 13, CallID: 14,
CSeq: 15, Subject: 16, Expires: 17, SessionExpires: 18, MinSE: 19, Accept: 20, AcceptEncoding: 21, AcceptLanguage: 22, AlertInfo: 23, Allow: 24, AuthenticationInfo: 25, CallInfo: 26, ContentDisposition: 27, ContentEncoding: 28, ContentId: 29,
ContentLanguage: 30, ContentTransferEncoding: 31, ContentType: 32, Date: 33, ErrorInfo: 34, InReplyTo: 35, MinExpires: 36, MIMEVersion: 37, Organization: 38, SecWebSocketKey: 39, SecWebSocketKey1: 40, SecWebSocketKey2: 41, Origin: 42,
Host: 43, SecWebSocketAccept: 44, Cookie: 45, Priority: 46, ProxyAuthorization: 47, ReplyTo: 48, RetryAfter: 49, FlowTimer: 50, Server: 51, SIPETag: 52, SIPIfMatch: 53, Supported: 54, Timestamp: 55, Unsupported: 56, UserAgent: 57,
Warning: 58, WWWAuthenticate: 59, SubscriptionState: 60, ReferTo: 61, ReferredBy: 62, Authorization: 63, Replaces: 64, Event: 65, AllowEvents: 66, SecurityClient: 67, SecurityServer: 68, SecurityVerify: 69, RSeq: 70,
RAck: 71, Reason: 72, Privacy: 73, RequestDisposition: 74, PMediaAuthorization: 75, Join: 76, TargetDialog: 77, PAssertedIdentity: 78, PPreferredIdentity: 79, AcceptContact: 80, RejectContact: 81, PCalledPartyId: 82, PAssociatedUri: 83, ContentLength: 84,
ReferSub: 85, AnswerMode: 86, PrivAnswerMode: 87, RemotePartyId: 88, HistoryInfo: 89, PAccessNetworkInfo: 90, PChargingVector: 91, PChargingFunctionAddresses: 92, PVisitedNetworkID: 93, UserToUser: 94, MAX_HEADERS: 95, NONE: 96
};
function removeSipMessageHeader(sipMessagePtr, headerType) {
const removeMethodPtr = Module.findExportByName(targetModule, "_ZN5resip10SipMessage6removeENS_7Headers4TypeE");
const removeMethod = new NativeFunction(removeMethodPtr, "void", ["pointer", "int"]);
removeMethod(sipMessagePtr, headerType);
return true;
}
function addSipMessageHeader(sipMessagePtr, headerType, headerName, headerValue) {
const addMethodPtr = Module.findExportByName(targetModule, "_ZN5resip10SipMessage9addHeaderENS_7Headers4TypeEPKciS4_i");
const addMethod = new NativeFunction(addMethodPtr, "void", ["pointer", "int", "pointer", "int", "pointer", "int"]);
globals.push(Memory.allocUtf8String(headerName));
globals.push(headerName.length);
globals.push(Memory.allocUtf8String(headerValue));
globals.push(headerValue.length);
addMethod(
sipMessagePtr,
headerType,
globals[globals.length - 4],
globals[globals.length - 3],
globals[globals.length - 2],
globals[globals.length - 1]
);
return true;
}
function cloneSipMessage(sipMessagePtr) {
const vtablePtr = Memory.readPointer(sipMessagePtr);
const cloneFuncPtr = Memory.readPointer(vtablePtr.add(2 * Process.pointerSize));
const cloneFunc = new NativeFunction(cloneFuncPtr, "pointer", ["pointer"]);
const newSipMessagePtr = cloneFunc(sipMessagePtr);
return newSipMessagePtr;
}
const baseSessionSendSipToNW = Module.findExportByName(targetModule, targetFunction);
if (baseSessionSendSipToNW) {
Interceptor.attach(baseSessionSendSipToNW, {
onEnter(args) {
if (!singleton || singleton_disabled) {
singleton = 1;
const originalSipMessagePtr = args[1];
const clonedSip = cloneSipMessage(originalSipMessagePtr);
removeSipMessageHeader(clonedSip, SipHeaders.MaxForwards);
addSipMessageHeader(clonedSip, SipHeaders.MaxForwards, "Max-Forwards", "69");
addSipMessageHeader(clonedSip, SipHeaders.UNKNOWN, "Bogus-Header", "cave"); // unknown for not used
args[1] = clonedSip;
}
},
onLeave(retval) {
}
});
} else {
console.log(`[-] Failed to find ${targetFunction}`);
}
setTimeout(function() {
Java.perform(function () {
let StackIF = Java.use("com.sec.internal.ims.core.handler.secims.StackIF");
const MESSAGE_TYPES = {
INVITE: 3848,
CANCEL: 2444,
RINGING: 1032,
SESSION_PROGRESS: 1829,
TRYING: 604,
DNE: 596,
BYE: 816
};
StackIF.processMessage.implementation = function (bArr, i) {
let printed = false;
if (bArr != null) {
if (i == MESSAGE_TYPES.CANCEL ||
i == MESSAGE_TYPES.RINGING ||
i == MESSAGE_TYPES.SESSION_PROGRESS ||
i == MESSAGE_TYPES.TRYING ||
i == MESSAGE_TYPES.DNE ||
i == MESSAGE_TYPES.BYE ||
i == MESSAGE_TYPES.INVITE ||
i > 0) {
let res = byteArrayToReadableString(bArr).split("\n");
let skipProcessing = false;
res.forEach(function(element) {
if (skipProcessing) return;
let match = element.match(/([A-Z].+)$/);
if (match && match.length > 1) {
let cleanedElement = match[1];
if (cleanedElement.includes("Content-Length")) {
skipProcessing = true; // only display one content-length per segment, everything after indicates the smuggled part
}
if (cleanedElement.includes("SIP") || cleanedElement.includes("sip") || cleanedElement.includes(": ")) {
console.log(`Type: ${i} : ${cleanedElement}`);
printed = true;
}
}
});
}
if (printed === true) {
console.log("\n");
}
return this.processMessage(bArr, i);
}
return this.processMessage(bArr, i);
};
function byteArrayToReadableString(byteArray) {
let result = "";
for (let i = 0; i < byteArray.length; i++) {
const byte = byteArray[i] & 0xff;
if (byte >= 32 && byte <= 126) {
result += String.fromCharCode(byte);
} else if (byte == 0x0a) {
result += "\n";
}
}
return result;
}
console.log("[+] Java hooks for StackIF successfully installed");
});
}, 500);
Results
I discovered multiple undocumented vulnerabilities in Danish telecommunication infrastructure:

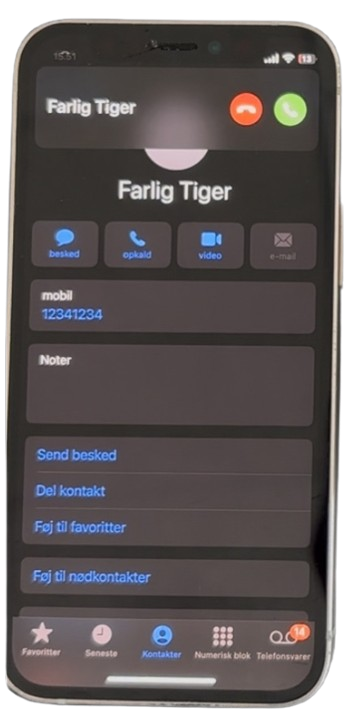

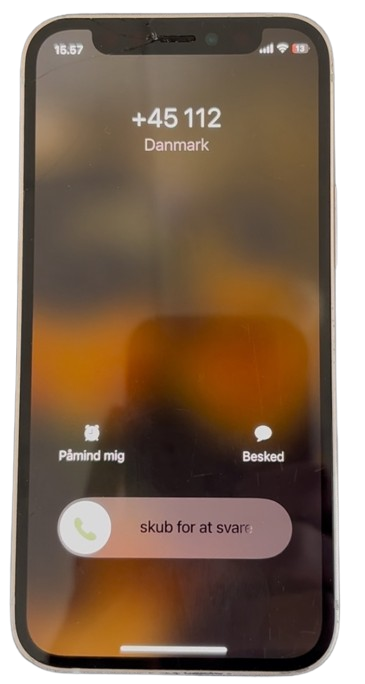

- Caller ID spoofing across several providers. By manipulating the
Fromheader, I could spoof caller IDs at multiple operators, as shown below. Effectiveness varied per carrier, and my previous employer’s network ignored the spoofedFromheader ;) - rendering the network safe against this attack.
Pseudo-deanonymization via an IVR system. A Danish taxi company’s IVR performed an address lookup based on the caller’s phone number, effectively exposing where and when that number last ordered a taxi.
Data smuggling for free connectivity. Because SIP
INVITEmessages are free to send, the header space can be abused to shuttle low-bandwidth data between devices. For example, a traveler without free roaming could sendINVITEmessages to a phone on their home Wi-Fi, receive the requested data in SIP headers, and read it locally.Denial of service on a Pixel 8A. Certain crafted messages consistently broke call reception on a Pixel 8A test device, indicating a crash or lockup condition.
All vulnerabilities were responsibly disclosed to the impacted parties prior to May 2025. They (said they) initiated internal investigations toward fixes.
Conclusion
Future development could address the current limitations through:
- Extending support to additional device models and IMS implementations. Modifying an open-source phone OS, such as LineageOS, to fully control the IMS stack might also be possible.
- Revisiting the
Alert-Infoheader to see whether ringtone spoofing (for example, a forced rickroll) can be made reliable. - Investigating SIP compression features as a potential attack surface.
These findings reinforce how important it is to harden SIP stacks across telecommunications infrastructure. And most importantly how fun it is to break systems!
